Perseus-17M1
The jammer is intended for providing protection in security check zones in airports, railway stations, stadiums, underground stations and during demining operations of radio controlled improvised explosive devices (RCIEDs).
The device provides reliable prevention of actuation of detonating fuses, when they can receive coded radio signal for detonation. The jammer can be used with all exist-ing devices applied for searching explosive devices and it does not interfere with their operation.
| Frequency range |
|
20...2700 MHz |
| Integral output power |
|
70 W |
Due to applied technology “OptiJam”®, the emitted signal of the device has high spec-tral density that allows to increase significantly the radius of blocking and at the same time to keep radio emission level non-hazardous for personnel.

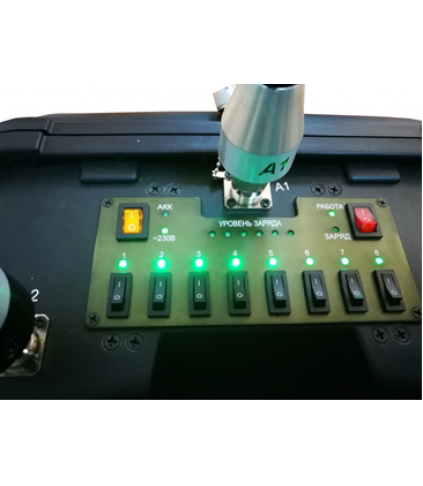

The device is delivered in standard attaché-case “Pelican”, it has built-in power source feeding from mains 230VAC and built-in rechargeable battery 12VDC with charge level indicator, self-diagnostics system with visual and sound indication of device conditions and built-in automatic charging unit. It has three wideband dismountable antennas.
Special features
- Portable wideband bomb jammer
- Application of “OptiJam”® technology
- Built-in rechargeable lithium-iron-phosphate battery with automatic charging unit
- External power supply from mains 230 VAC 50 Hz
- Built-in digital diagnostics system with alarm about malfunction
- Only three wideband antennas provide jamming along the whole frequency range
Technical specifications
| Frequency range | 20...2700 MHz |
| Integral output power | 70 W |
| Power supply | built-in battery 12 VDC, 25 A/h; mains 230 VAC 50 Hz |
| Continuous operational time from built-in rechargeable battery | not less than 0.75 h |
| Continuous operation time from mains supply | unlimited |
| Forming of jamming signal | digital (PLL+FPGA) |
| Dimensions | 550 × 360 × 230 mm |
| Mass | 17,5 kg |
Integral output power is measured at impedance 50 ohm. The device has All Union State Standard (GOST P 12.2.006.0) and hygienic certificates. The device is manufactured in compliance with ISO 9001 and IP 55.
