Perseus-30

The device is developed for protection of stationary objects against threats of possible terroristic acts when explosive devices with radio controlled fuses (RCIEDs) may be used for it.

The device also can be used for jamming cellular, trunked radio and other types of communication links.

Frequency range 20…2700; 3300...3700 (option) MHz
Integral output power 200 W

The device is powered from stationary electrical mains 230V, 50 Hz. The efficiency of device is significantly increased due to application of “OptiJam” technology for optimal distribution of power spectral density along the operating frequency range.

The device case is designed for operation in outdoors conditions; it has high heat dissipation and protection against harsh environment by IP66 grade.

Although the jammer operates in wide frequency range (20...2700 MHz and 3300...3700 MHz optional), only two wide band emitting antennas with omni-directional pattern are used in this jammer

Specific features
  • stationary wide band bomb jammer with barrage jamming;
  • power supply from electrical mains 230 VAC 50 Hz;
  • “OptiJam” technology application;
  • built-in digital diagnostics system with alarm about malfunction;
  • high integral output power (200 W);
  • future-proof due to operation in perspective 5G NR FR1 frequency band (option);
  • only two wide band emitting antennas provide jamming in the full range of operating frequencies;

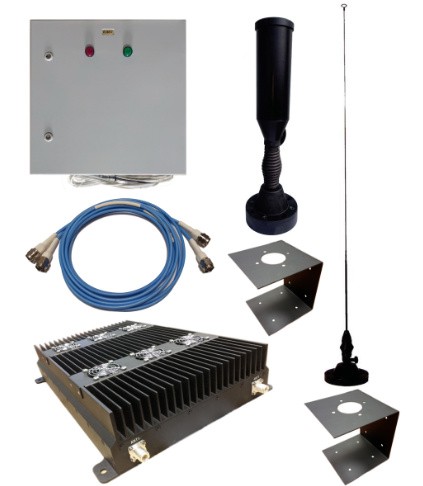

  • AC-power adaptor and control unit are installed inside the stationary electrical cabinet apart from main unit that decreases thermal load at main unit and simplifies the exploitation of the device.
Technical specifications
Frequency range 20…2700; 3300...3700 (option) MHz
Integral output power 200 W
Continuous operation time from mains supply unlimited
Mains power supply 230 V 50 Hz
Operational temperature range −40…+50 °С
Dimensions 497 × 340 × 96 mm
Mass not more than 18 kg
Package plywood box, 2 shipping positions, gross weight 88 kg

Integral output power is measured at impedance 50 ohm. Construction is in compliance with IP 66.
