Perseus-18
The jammer is intended for providing protection in security check zones in airports, railway stations, stadiums, underground stations and during demining operations of radio controlled improvised explosive devices (RCIEDs).
The device provides reliable prevention of actuation of detonating fuses, when they can receive coded radio signal for detonation. The jammer can be used with all existing devices applied for searching explosive devices and it does not interfere with their operation. The jammer jams detonating fuses in frequency range 20...2700 and 5600...5900 MHz and there are no gaps in its spectrum.
| Frequency range |
|
20...2700; 5600...5900 MHz |
| Integral output power |
|
51 W |

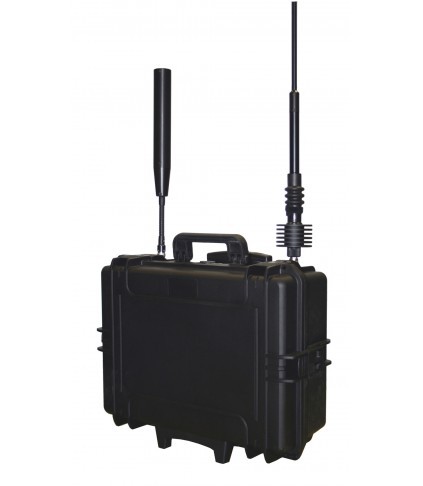

The device is delivered in standard attaché-case “Pelican”, it has built-in rechargeable batteries and built-in automatic charger, It is equipped with self-diagnostics system and sound and visual indication of device condi-tions. The device has two removable wideband antennas.
Flatness of emission amplitude-frequency response does not exceed 3 db.
Special features
- Portable wideband bomb jammer
- Built-in autonomous rechargeable power source of base of lithium-iron-phosphate battery with automat-ic charging unit
- External power supply from mains 230 VAC 50 Hz
- Built-in digital diagnostics system with alarm about malfunction
- Long-time autonomous operation
- Continuous spectrum
- Only two wideband antennas provide jamming along the whole frequency range
Technical specifications
| Frequency range | 20...2700; 5600...5900 MHz |
| Integral output power | 51 W |
| Power supply | built-in battery 12VDC, 50A/h; mains 230VAC 50 Hz |
| Continuous operational time from built-in rechargeable battery | not less than 4.0 h |
| Continuous operation time from mains supply | unlimited |
| Forming of jamming signal | digital (PLL+FPGA) |
| Dimensions | 545 × 395 × 220 mm |
| Mass | not more than 19,6 kg |
Integral output power is measured at impedance 50 ohm. The device has All Union State Standard (GOST P 12.2.006.0) and hygienic certificates. The device is manufactured in compliance with ISO 9001 and IP 55.
